Specification Value ITEM INFO Marine Anti-Siphon SIZE 1/2 x 1/2 NOTES • Calibrated to support 30" column of gasoline. WEIGHT 0.000 SHAPE MIP X MIP Valve

Specification Value SIZE 1/4" x 1/8" A 1.11 WEIGHT 0.000 HEX 0.44 SHAPE Reducer APPROX WT LBS 0.03

Specification Value SHAPE Nipple WEIGHT 1.600 LENGTH 48"

Specification Value BULLETS * Furnished with gaskets A 0.69 TUBE OD X MALE NPTF 1/8” x 10-32”* WEIGHT 0.020 HEX 0.37 SHAPE Straight/Connector APPROX WT LBS 0.02

Specification Value A 0.75 B 0.91 TUBE OD X MALE NPTF 5/16” x 3/8” WEIGHT 0.100 BODY SIZE 0.47 SHAPE 90 degree elbow APPROX WT LBS 0.1

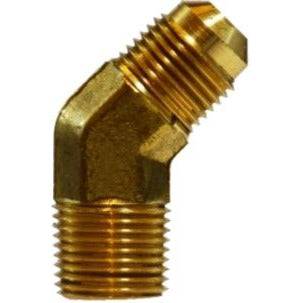

Specification Value A 0.93 B 0.94 WEIGHT 0.110 BODY SIZE 0.59 SHAPE 45 degree elbow APPROX WT LBS 0.11 MALE FLARE X MALE NPTF 3/8” x 3/8”

Specification Value A 1.76 B 0.97 WEIGHT 0.060 HOSE ID X MALE BSPT 3/8" x 3/8" HEX 0.62 SHAPE Straight/Connector APPROX WT LBS 0.06 THREAD 5/818

Specification Value A 2.4 B 1.45 WEIGHT 0.220 HOSE ID 3/4" x 3/4" HEX 1.25 SHAPE Straight/Connector APPROX WT LBS 0.22 THREAD 11/1612

Specification Value HOSE ID X FEMALE 45 FLARE 3/8” x 1/2” A 1.81 B 0.97 WEIGHT 0.100 HEX 0.87 SHAPE 45 degree elbow APPROX WT LBS 0.87 THREAD 3/416 3/8...

Specification Value WEIGHT 0.050 HOSE ID X MALE BSPT 3/8" x 1/4" SHAPE Straight/Connector

Specification Value A 1 WEIGHT 0.000 THREAD SIZE NPTF 1/8" x 1/16" HEX 0.56 SHAPE Nipple APPROX WT LBS 0.05

Specification Value A 1.19 B 1.287 NOTES • Can be purchased with BSPP threads WEIGHT 0.207 HEX 0.663 SHAPE Tee TUBE OD MM 12 THREAD 3/8"

Specification Value A 1.034 B 1.17 NOTES • Can be purchased with BSPP threads WEIGHT 0.183 HEX 0.663 SHAPE Tee TUBE OD MM 10 THREAD 3/8"

Specification Value A 0.878 B 1.092 NOTES • Can be purchased with BSPP threads WEIGHT 0.136 HEX 0.585 SHAPE Tee TUBE OD MM 10 THREAD 1/4"

Specification Value A 0.878 B 1.014 NOTES • Can be purchased with BSPP threads WEIGHT 0.106 HEX 0.585 SHAPE Tee TUBE OD MM 8 THREAD 1/4"

Specification Value A 0.819 B 0.975 NOTES • Can be purchased with BSPP threads WEIGHT 0.077 HEX 0.585 SHAPE Tee TUBE OD MM 6 THREAD 1/4"
