Description

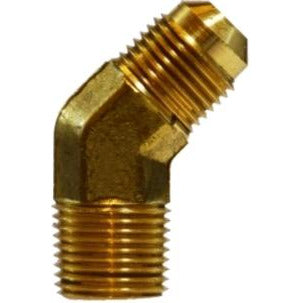

The 3/8 x 3/8 Male Flare x Male Iron Pipe 45 Elbow is a precision-machined fitting designed for secure, leak-proof fluid and gas connections. The 45-degree angle allows for efficient directional changes while maintaining a strong metal-to-metal seal without additional sealants. This fitting is commonly used in fuel lines, pneumatic systems, refrigeration, and hydraulic applications.

Specification Details
TYPE Male Iron Pipe Elbow
DESIGN 45 degree flare connection for a strong, leak-proof, metal-to-metal seal
MATERIAL Brass for durability and corrosion resistance
MATERIAL CONSTRUCTION Forged Brass
ADDITIONAL INFORMATION 0.93 x 0.94" Center to End
TUBE WALL THICKNESS 0.032"
BODY SIZE 0.59"
WEIGHT (LBS)
 0.110
CONNECTION SIZE 1 3/8"
CONNECTION SIZE 2 3/8"
CONNECTION TYPE Male Flared|MNPT
CONNECTION TYPE 1 Male Flared
CONNECTION TYPE 2
 Male NPTF
FITTING TYPE 45 deg Elbow
PRESSURE RATING 1000 psi
TEMPERATURE RATING -65 to 250 deg F
THREAD SIZE 5/8-18 x 3/8-18
FOR USE WITH Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
APPLICATIONS Ideal for hydraulic, pneumatic, fuel systems, automotive, and industrial applications
BRAND Midland Industries



Description

The 3/8 x 3/8 Male Flare x Male Iron Pipe 45 Elbow is a precision-machined fitting designed for secure, leak-proof fluid and gas connections. The 45-degree angle allows for efficient directional changes while maintaining a strong metal-to-metal seal without additional sealants. This fitting is commonly used in fuel lines, pneumatic systems, refrigeration, and hydraulic applications.

Specification Details
TYPE Male Iron Pipe Elbow
DESIGN 45 degree flare connection for a strong, leak-proof, metal-to-metal seal
MATERIAL Brass for durability and corrosion resistance
MATERIAL CONSTRUCTION Forged Brass
ADDITIONAL INFORMATION 0.93 x 0.94" Center to End
TUBE WALL THICKNESS 0.032"
BODY SIZE 0.59"
WEIGHT (LBS)
 0.110
CONNECTION SIZE 1 3/8"
CONNECTION SIZE 2 3/8"
CONNECTION TYPE Male Flared|MNPT
CONNECTION TYPE 1 Male Flared
CONNECTION TYPE 2
 Male NPTF
FITTING TYPE 45 deg Elbow
PRESSURE RATING 1000 psi
TEMPERATURE RATING -65 to 250 deg F
THREAD SIZE 5/8-18 x 3/8-18
FOR USE WITH Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
APPLICATIONS Ideal for hydraulic, pneumatic, fuel systems, automotive, and industrial applications
BRAND Midland Industries



Midland Industries by Midland Industries

10453

3/8 X 3/8 M FLARE X MIP 45 ELB

$6.90
$6.90
