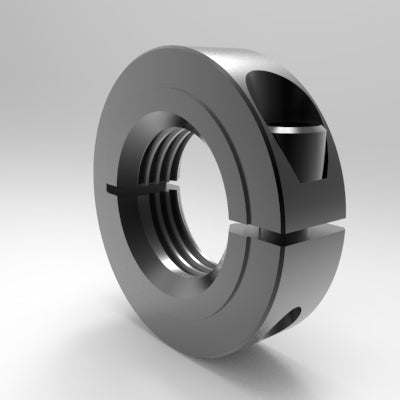

1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
    1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
    1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
1-1/4"-12 UNF/UNC Threaded Hub Collar One-Piece Split Clamp-Type, Steel
Description

Specifications HUB7L104F

  • UPC Code: 662786030017
  • Total Width (in.): 0.500
  • Series: Solution
  • Weight (lb.): 0.29
  • Material: Steel
  • Finish: BLACK OXIDE
  • Screw Size: 1/4-28 x 5/8
  • Screw Type: SHCS
  • Outside Diameter (in.): 1.875
  • Precision-machined hub on collar face limits contact area
  • Ideal for bearing inner-race
  • Use on standard UNF shafts
  • Superior holding power over set-screw type collars
    •
Designed for use on standard UNF shafts, Threaded Hub Collars feature a precision-machined hub on the face that limits the contact area, minimizing friction. They are ideally suited as a bearing inner-race. They are non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel


Shaft Collar Basics Video

View CAD File
Description

Specifications HUB7L104F

  • UPC Code: 662786030017
  • Total Width (in.): 0.500
  • Series: Solution
  • Weight (lb.): 0.29
  • Material: Steel
  • Finish: BLACK OXIDE
  • Screw Size: 1/4-28 x 5/8
  • Screw Type: SHCS
  • Outside Diameter (in.): 1.875
  • Precision-machined hub on collar face limits contact area
  • Ideal for bearing inner-race
  • Use on standard UNF shafts
  • Superior holding power over set-screw type collars
    •
Designed for use on standard UNF shafts, Threaded Hub Collars feature a precision-machined hub on the face that limits the contact area, minimizing friction. They are ideally suited as a bearing inner-race. They are non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel


Shaft Collar Basics Video

View CAD File
