Specifications 15A200CP
- UPC Code: 662786033384
- Total Width (in.): 0.750
- Series: Solution
- Weight (lb.): 0.73
- Material: Aluminum
- Finish: None
- Bore Size (in.): 2
- Screw Size: 3/8-24 x 1
- Screw Type: SHCS
- Outside Diameter (in.): 2.5
Technical Resources 15A200CP
- Mount square shafts or structural tubing to components
- Can be placed anywhere on shaft
- Supplied with mounting screw
These collars feature a two-piece construction with flats on outside surfaces which are drilled and tapped for attachment to each other or to other components. Also included is a countersunk hole for mounting to any surface. These collars are stackable, secure and easy to open and adjust.
The regular Stackable version has flats on two surfaces for stacking. The Stackable (Cap) version has a single flat to leave a finished outside surface when no further stacking is required.
Stocked in:
- Steel
- Stainless Steel
- Aluminum
Shaft Collar Basics Video������
View CAD File������
Specifications 15A200CP
- UPC Code: 662786033384
- Total Width (in.): 0.750
- Series: Solution
- Weight (lb.): 0.73
- Material: Aluminum
- Finish: None
- Bore Size (in.): 2
- Screw Size: 3/8-24 x 1
- Screw Type: SHCS
- Outside Diameter (in.): 2.5
Technical Resources 15A200CP
- Mount square shafts or structural tubing to components
- Can be placed anywhere on shaft
- Supplied with mounting screw
These collars feature a two-piece construction with flats on outside surfaces which are drilled and tapped for attachment to each other or to other components. Also included is a countersunk hole for mounting to any surface. These collars are stackable, secure and easy to open and adjust.
The regular Stackable version has flats on two surfaces for stacking. The Stackable (Cap) version has a single flat to leave a finished outside surface when no further stacking is required.
Stocked in:
- Steel
- Stainless Steel
- Aluminum
Shaft Collar Basics Video������
View CAD File������
Translation missing: en.products.product.sku:15a200cp

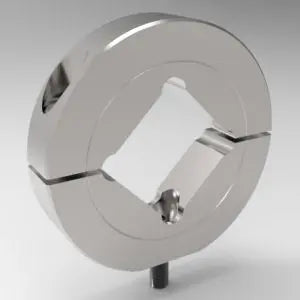

2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap), Aluminum
