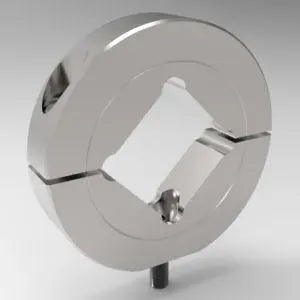

1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
    1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
    1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum
Description

Specifications 15A108CP

  • UPC Code: 662786033377
  • Total Width (in.): 0.625
  • Series: Solution
  • Weight (lb.): 0.47
  • Material: Aluminum
  • Finish: None
  • Bore Size (in.): 1-1/2
  • Screw Size: 5/16-24 x 1
  • Screw Type: SHCS
  • Outside Diameter (in.): 2.375

Technical Resources 15A108CP

  • Mount square shafts or structural tubing to components
  • Can be placed anywhere on shaft
  • Supplied with mounting screw
Square Bore Shaft Mounting Collars are designed for use on standard square shafts or structural tubing. They can be completely disassembled and placed anywhere on a shaft. They are precision machined, non-marring, easy to adjust, with high clamping power.

These collars feature a two-piece construction with flats on outside surfaces which are drilled and tapped for attachment to each other or to other components. Also included is a countersunk hole for mounting to any surface. These collars are stackable, secure and easy to open and adjust.

The regular Stackable version has flats on two surfaces for stacking. The Stackable (Cap) version has a single flat to leave a finished outside surface when no further stacking is required.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum


Shaft Collar Basics Video������

View CAD File������
Description

Specifications 15A108CP

  • UPC Code: 662786033377
  • Total Width (in.): 0.625
  • Series: Solution
  • Weight (lb.): 0.47
  • Material: Aluminum
  • Finish: None
  • Bore Size (in.): 1-1/2
  • Screw Size: 5/16-24 x 1
  • Screw Type: SHCS
  • Outside Diameter (in.): 2.375

Technical Resources 15A108CP

  • Mount square shafts or structural tubing to components
  • Can be placed anywhere on shaft
  • Supplied with mounting screw
Square Bore Shaft Mounting Collars are designed for use on standard square shafts or structural tubing. They can be completely disassembled and placed anywhere on a shaft. They are precision machined, non-marring, easy to adjust, with high clamping power.

These collars feature a two-piece construction with flats on outside surfaces which are drilled and tapped for attachment to each other or to other components. Also included is a countersunk hole for mounting to any surface. These collars are stackable, secure and easy to open and adjust.

The regular Stackable version has flats on two surfaces for stacking. The Stackable (Cap) version has a single flat to leave a finished outside surface when no further stacking is required.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum


Shaft Collar Basics Video������

View CAD File������
NABCO Industrial Supply by NABCO Industrial Supply

Translation missing: en.products.product.sku:15a108cp

1-1/2" Square Bore Shaft Mounting Collar Two-Piece Stackable (Cap),Aluminum

Request a Quote
Request a Quote
