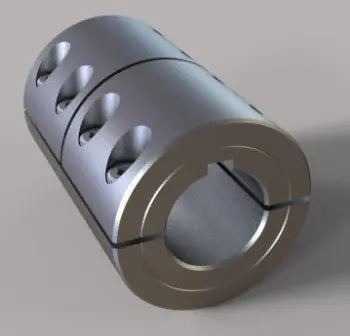

14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
    14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
    14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
14MM x 14MM ID Three-Piece Split Clamp-Type Rigid Shaft Coupling, Steel w/ 5MM Keyways
Description

Specifications 5LM014014TK

  • UPC Code: 662786042874
  • Series: Signature
  • Weight (lb.): 0.39
  • Material: Steel
  • Finish: BLACK OXIDE
  • Screw Size: M4x0.7
  • Outside Diameter (in.): 1.875
  • Fully metric, including clamp screws
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Keeps one shaft in place while the other is moved or changed
  • Smooth bore protects shafts from damage
    •
Designed for aligned shafts, the 3-Piece Clamp-Type Coupling makes two shafts function as one. It can remain fixed to one shaft while the other is moved or changed, or come completely apart to allow the most convenient assembly and adjustment.

Metric 3-Piece Clamp-Type Couplings are available in straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel

View CAD File������
Description

Specifications 5LM014014TK

  • UPC Code: 662786042874
  • Series: Signature
  • Weight (lb.): 0.39
  • Material: Steel
  • Finish: BLACK OXIDE
  • Screw Size: M4x0.7
  • Outside Diameter (in.): 1.875
  • Fully metric, including clamp screws
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Keeps one shaft in place while the other is moved or changed
  • Smooth bore protects shafts from damage
    •
Designed for aligned shafts, the 3-Piece Clamp-Type Coupling makes two shafts function as one. It can remain fixed to one shaft while the other is moved or changed, or come completely apart to allow the most convenient assembly and adjustment.

Metric 3-Piece Clamp-Type Couplings are available in straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel

View CAD File������
