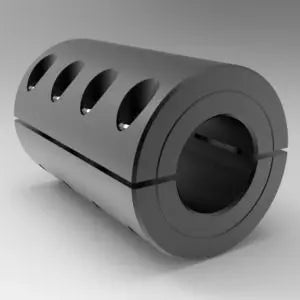

5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
    5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
    5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
5/8" X 19mm Inch-Metric Conv. Coupling Two-Piece Split Clamp-Type, Steel
Description

Specifications 5L01019MF

  • UPC Code: 662786021534
  • Series: Signature
  • Weight (lb.): 1.39
  • Material: Steel
  • Finish: BLACK OXIDE
  • Bore Size (in.): 5/8
  • Screw Size: 10-32 x 5/8
  • Mate inch shafts with metric shafts
  • Two pieces for convenient assembly and adjustment
  • Zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
    •
Inch-Metric Conversion Couplings feature one side with an inch-sized bore and the other a metric size. A full range of common sizes is included in the selection. External dimensions and screws are inch. They can be further modified by the user or Stafford to include keyways.

Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment. It is precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel

View CAD File������
Description

Specifications 5L01019MF

  • UPC Code: 662786021534
  • Series: Signature
  • Weight (lb.): 1.39
  • Material: Steel
  • Finish: BLACK OXIDE
  • Bore Size (in.): 5/8
  • Screw Size: 10-32 x 5/8
  • Mate inch shafts with metric shafts
  • Two pieces for convenient assembly and adjustment
  • Zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
    •
Inch-Metric Conversion Couplings feature one side with an inch-sized bore and the other a metric size. A full range of common sizes is included in the selection. External dimensions and screws are inch. They can be further modified by the user or Stafford to include keyways.

Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment. It is precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel

View CAD File������
