Description
This single-stage regulator is designed to be compact and economical, but with features typically available in more expensive regulators. It is used where weight, cost and size are factors.
  • Category: Welding Supplies|Gas Cutting & Welding|Regulators & Flowmeters
  • Prop 65 Warning Message: WARNING: This product can expose you to Lead and lead compounds, 7439-92-1, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • MfgPartNumber: 3000296
  • MinimumOrder: 1
  • StandardPack: 1 EA
  • Body Material: ABS
  • Capacities: Light Duty
  • Case Material: ABS
  • Connection Type: 9/16 in - 18 RH (Outlet); CGA 540 (Inlet)
  • Flow Range: 0 - 80 psig
  • Gas Type: Oxygen
  • Gauge Size: 50 mm
  • Height [Nom]: 4.88 in
  • Inlet Connection: CGA-540
  • Inlet Pressure [Max]: 3,000 psig
  • Inlet Type: CGA-540
  • Length [Nom]: 5.41 in
  • Outlet Connection: 9/16 in - 18 RH
  • Outlet Pressure [Max]: 80 psig
  • Outlet Type: Right Hand Thread
  • Series: 601
  • Type: Single Stage Regulator
  • Width [Nom]: 4.16 in
  • Wt.: 1.39 lb
Description
This single-stage regulator is designed to be compact and economical, but with features typically available in more expensive regulators. It is used where weight, cost and size are factors.
  • Category: Welding Supplies|Gas Cutting & Welding|Regulators & Flowmeters
  • Prop 65 Warning Message: WARNING: This product can expose you to Lead and lead compounds, 7439-92-1, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • MfgPartNumber: 3000296
  • MinimumOrder: 1
  • StandardPack: 1 EA
  • Body Material: ABS
  • Capacities: Light Duty
  • Case Material: ABS
  • Connection Type: 9/16 in - 18 RH (Outlet); CGA 540 (Inlet)
  • Flow Range: 0 - 80 psig
  • Gas Type: Oxygen
  • Gauge Size: 50 mm
  • Height [Nom]: 4.88 in
  • Inlet Connection: CGA-540
  • Inlet Pressure [Max]: 3,000 psig
  • Inlet Type: CGA-540
  • Length [Nom]: 5.41 in
  • Outlet Connection: 9/16 in - 18 RH
  • Outlet Pressure [Max]: 80 psig
  • Outlet Type: Right Hand Thread
  • Series: 601
  • Type: Single Stage Regulator
  • Width [Nom]: 4.16 in
  • Wt.: 1.39 lb
J.W. Harris by J.W. Harris

348-3000296

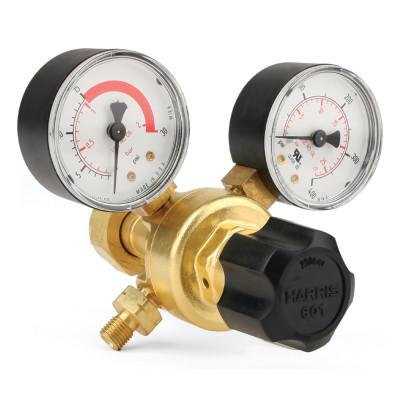

J.W. Harris 601 Single Stage Regulators

$149.65
$149.65
$108.26
