Description

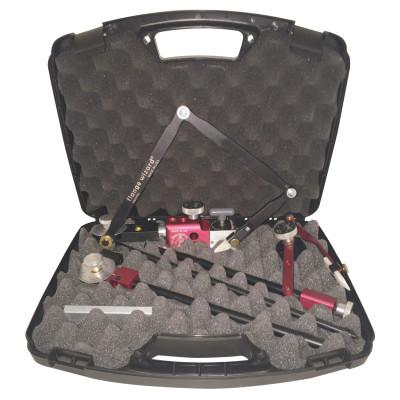

Two complete tools in one case: Miter Marker Arm Assembly #MSA505 and Multi-Hole Image Tower Assembly #MHA515. The Miter Marker Arm Assembly #MSA505 allows you to telescope out over existing welds to layout angles or change the angles of pipe-fittings to meet special needs. Marking arm is its own 360° rotating shaft with its leveling system built in. The Multi-Hole Image Tower Assembly #MHA515 allows layout of elongated holes in bulkheads for pipe at any angle. Odd angles of saddle holes (ellipse) for pipe branches are made easy. Use on flat material or pipe to match laterals at compound angles or at 90°.
  • Category: Welding Supplies|Welding & Cutting Accessories|Cutting & Burning Guides
  • Hazmat: N
  • MfgPartNumber: MMC505
  • MinimumOrder: 1 EA
  • StandardPack: 1 EA
  • Includes: Miter Marker Arm Assembly #MSA505; Multi-Hole Image Tower Assembly #MHA515
  • Pipe Cap. [Max]: 18 in
  • Pipe Cap. [Min]: 1 1/2 inch
Description
Two complete tools in one case: Miter Marker Arm Assembly #MSA505 and Multi-Hole Image Tower Assembly #MHA515. The Miter Marker Arm Assembly #MSA505 allows you to telescope out over existing welds to layout angles or change the angles of pipe-fittings to meet special needs. Marking arm is its own 360° rotating shaft with its leveling system built in. The Multi-Hole Image Tower Assembly #MHA515 allows layout of elongated holes in bulkheads for pipe at any angle. Odd angles of saddle holes (ellipse) for pipe branches are made easy. Use on flat material or pipe to match laterals at compound angles or at 90°.
  • Category: Welding Supplies|Welding & Cutting Accessories|Cutting & Burning Guides
  • Hazmat: N
  • MfgPartNumber: MMC505
  • MinimumOrder: 1 EA
  • StandardPack: 1 EA
  • Includes: Miter Marker Arm Assembly #MSA505; Multi-Hole Image Tower Assembly #MHA515
  • Pipe Cap. [Max]: 18 in
  • Pipe Cap. [Min]: 1 1/2 inch
Flange Wizard® by Flange Wizard®

496-MMC505

Flange Wizard® Combo Cases

$378.34
$378.34
$330.72
 More payment options
