Description
Handles a wide variety of fluids in transfer work, coolant, lubrication, and hydraulic applications in the machine tool and industrial fields. Seal options include compression packing, lip seal, and mechanical seal. Standard pumps will operate at 200 psi and 250° F.
  • Category: Pumps|Pumping Equipment|Rotary Pumps
  • Hazmat: N
  • MinimumOrder: 1 EA
  • StandardPack: 1 EA
  • 100 PSI Flow / Power: 22.3 gal/min / 2.20 hp
  • 200 PSI Flow/Power: 21.4 gal/min/3.50 hp
  • 50 PSI Flow/Power: 22.7 gal/min/1.40 hp
  • Displacement: 0.0135 Gals/Rev
  • Gear Material: Steel
  • Gear Type: Helical
  • Housing Material: Iron
  • Mounting: Pedestal
  • Port Size: 3/4 in
  • Pressure [Max]: 200 PSI
  • Shaft Diam: 0.75 in
  • Shaft Height: 3.88 in
  • Slip gpm/psi: 0.009
  • Speed [Max]: 1,725 rpm
  • Type: With Relief Valve
  • Wt.: 21 1/2 lb
Description
Handles a wide variety of fluids in transfer work, coolant, lubrication, and hydraulic applications in the machine tool and industrial fields. Seal options include compression packing, lip seal, and mechanical seal. Standard pumps will operate at 200 psi and 250° F.
  • Category: Pumps|Pumping Equipment|Rotary Pumps
  • Hazmat: N
  • MinimumOrder: 1 EA
  • StandardPack: 1 EA
  • 100 PSI Flow / Power: 22.3 gal/min / 2.20 hp
  • 200 PSI Flow/Power: 21.4 gal/min/3.50 hp
  • 50 PSI Flow/Power: 22.7 gal/min/1.40 hp
  • Displacement: 0.0135 Gals/Rev
  • Gear Material: Steel
  • Gear Type: Helical
  • Housing Material: Iron
  • Mounting: Pedestal
  • Port Size: 3/4 in
  • Pressure [Max]: 200 PSI
  • Shaft Diam: 0.75 in
  • Shaft Height: 3.88 in
  • Slip gpm/psi: 0.009
  • Speed [Max]: 1,725 rpm
  • Type: With Relief Valve
  • Wt.: 21 1/2 lb
BSM Pump by BSM Pump

117-713-30-8

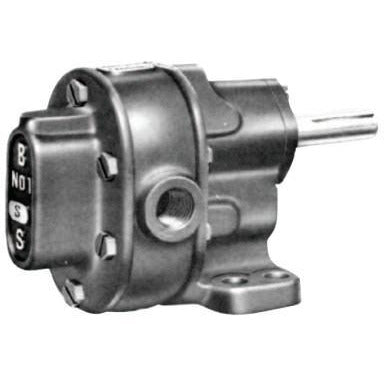

BSM Pump S-Series Pedestal Mount Gear Pumps, Type:With Relief Valve, Shaft Diam:0.75 in

$1,753.24
$1,753.24
$667.00
Rotation:
0 PSI Flow/Power:
Flow [Max]:
