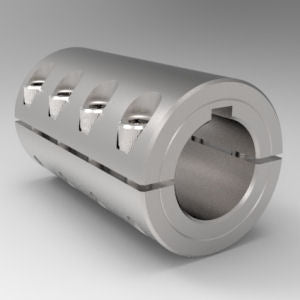

7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
    7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
    7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Two pieces for convenient assembly and adjustment
  • Available with straight-through or stepped bores
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment. Standard keyways provide added torque capacity and fixed shaft phasing.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum



Specifications

Part Number

 7S014014FK

Series

 Signature

Material

 Stainless Steel

Alloy

 303

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 0.93 lb

Country of Origin

 USA

UPC Code

 662786018053

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 7/8 in

Keyway A

 3/16 in

Bore Size B



 7/8 in

Keyway B

 3/16 in

Outside Diameter

 1.625 in

Total Length

 2.500 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 18-8 Stainless Steel
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Two pieces for convenient assembly and adjustment
  • Available with straight-through or stepped bores
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment. Standard keyways provide added torque capacity and fixed shaft phasing.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum



Specifications

Part Number

 7S014014FK

Series

 Signature

Material

 Stainless Steel

Alloy

 303

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 0.93 lb

Country of Origin

 USA

UPC Code

 662786018053

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 7/8 in

Keyway A

 3/16 in

Bore Size B



 7/8 in

Keyway B

 3/16 in

Outside Diameter

 1.625 in

Total Length

 2.500 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 18-8 Stainless Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

7S014014FK

7/8" X 7/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS

$209.61
