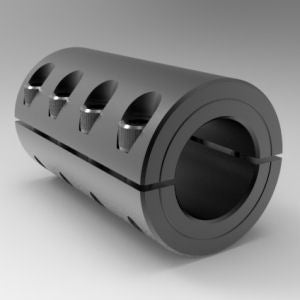

5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
    5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
    5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel
Description
  • Mate two shafts with zero backlash
  • Two pieces for convenient assembly and adjustment
  • Smooth bore protects shafts from damage
  • Available with straight-through or stepped bores
  • Offered in High Strength, Low Profile and Heavy Duty styles
Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment.

Clamp-Type Couplings are available in straight-through or stepped bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power



Specifications

Part Number

 7L010010F

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 Low Profile

Approximate Weight

 0.53 lb

Country of Origin

 USA

UPC Code

 662786017032

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 5/8 in

Bore Size B



 5/8 in

Outside Diameter

 1.313 in

Total Length

 2.000 in

Recessed Screw

 No

Screw Size

 10-32 x 5/8

Screw Material

 Alloy Steel
Description
  • Mate two shafts with zero backlash
  • Two pieces for convenient assembly and adjustment
  • Smooth bore protects shafts from damage
  • Available with straight-through or stepped bores
  • Offered in High Strength, Low Profile and Heavy Duty styles
Designed for aligned shafts, the 2-Piece Clamp-Type Coupling makes two shafts function as one. This coupling comes completely apart to allow the most convenient assembly and adjustment.

Clamp-Type Couplings are available in straight-through or stepped bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power



Specifications

Part Number

 7L010010F

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 Low Profile

Approximate Weight

 0.53 lb

Country of Origin

 USA

UPC Code

 662786017032

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 5/8 in

Bore Size B



 5/8 in

Outside Diameter

 1.313 in

Total Length

 2.000 in

Recessed Screw

 No

Screw Size

 10-32 x 5/8

Screw Material

 Alloy Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

7L010010F

5/8" X 5/8" Two-Piece Split Clamp-Type Rigid Shaft Coupling, Steel

$67.38
$67.38
