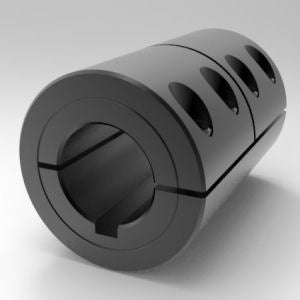

3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
    3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
    3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Available with straight-through or stepped bores
  • Smooth bore protects shafts from damage
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one. Standard keyways provide added torque capacity and fixed shaft phasing. It is ideal for overhung or unsupported shafts and is an excellent way to attach items such as mixer paddles and shaft extensions.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in two styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD



Specifications

Part Number

 5L012008K

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 High Strength

Approximate Weight

 1.41 lb

Country of Origin

 USA

UPC Code

 662786015984

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 3/4 in

Keyway A

 3/16 in

Bore Size B



 1/2 in

Keyway B

 0.125 in

Outside Diameter

 1.750 in

Total Length

 2.625 in

Recessed Screw

 Yes

Screw Size

 1/4-28 x 3/4

Screw Material

 Alloy Steel
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Available with straight-through or stepped bores
  • Smooth bore protects shafts from damage
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one. Standard keyways provide added torque capacity and fixed shaft phasing. It is ideal for overhung or unsupported shafts and is an excellent way to attach items such as mixer paddles and shaft extensions.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in two styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD



Specifications

Part Number

 5L012008K

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 High Strength

Approximate Weight

 1.41 lb

Country of Origin

 USA

UPC Code

 662786015984

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 3/4 in

Keyway A

 3/16 in

Bore Size B



 1/2 in

Keyway B

 0.125 in

Outside Diameter

 1.750 in

Total Length

 2.625 in

Recessed Screw

 Yes

Screw Size

 1/4-28 x 3/4

Screw Material

 Alloy Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

5L012008K

3/4" X 1/2" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, Steel

$101.83
$101.83
