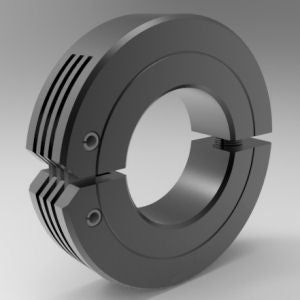

2-1/2" Hinge Type Shaft Collar, Steel
    2-1/2" Hinge Type Shaft Collar, Steel
2-1/2" Hinge Type Shaft Collar, Steel
2-1/2" Hinge Type Shaft Collar, Steel
    2-1/2" Hinge Type Shaft Collar, Steel
2-1/2" Hinge Type Shaft Collar, Steel
Description
  • Easy to handle – no loose screws
  • Can be assembled anywhere on shaft
  • Smooth bore protects shafts from damage
  • Stocked in steel and stainless steel
Available only from Stafford, the Hinge Collar features a triple-link hinge and captive screw in one unit, combining the flexibility of the two-piece collar with the simplicity of the one-piece.

Stafford’s exclusive Hinge Shaft Collars are perfect where fast operation is required, such as hostile environments or situations where there are space and time constraints. Hinge Shaft Collars are functionally similar to two-piece collars, for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub.

They are easy to assemble, reposition, and take apart; eliminating fumbling, lost screws and wasted time. Hinge Shaft Collars provide the same axial holding power as conventional collars. They have a smooth bore that will not damage shafts.

Stocked in:
  • Steel
  • Stainless Steel
Standard Series offers economy-priced versions (32LXXXH and 32SXXXH parts).



Specifications

Part Number

 2L208H

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 High Strength

Approximate Weight

 1.45 lb

Country of Origin

 USA

UPC Code

 662786009235

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size

 2-1/2 in

Outside Diameter

 4.000 in

Width

 0.750 in

Recessed Screw

 Yes

Screw Size

 3/8-24 x 1

Screw Material

 Alloy Steel
Description
  • Easy to handle – no loose screws
  • Can be assembled anywhere on shaft
  • Smooth bore protects shafts from damage
  • Stocked in steel and stainless steel
Available only from Stafford, the Hinge Collar features a triple-link hinge and captive screw in one unit, combining the flexibility of the two-piece collar with the simplicity of the one-piece.

Stafford’s exclusive Hinge Shaft Collars are perfect where fast operation is required, such as hostile environments or situations where there are space and time constraints. Hinge Shaft Collars are functionally similar to two-piece collars, for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub.

They are easy to assemble, reposition, and take apart; eliminating fumbling, lost screws and wasted time. Hinge Shaft Collars provide the same axial holding power as conventional collars. They have a smooth bore that will not damage shafts.

Stocked in:
  • Steel
  • Stainless Steel
Standard Series offers economy-priced versions (32LXXXH and 32SXXXH parts).



Specifications

Part Number

 2L208H

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 High Strength

Approximate Weight

 1.45 lb

Country of Origin

 USA

UPC Code

 662786009235

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size

 2-1/2 in

Outside Diameter

 4.000 in

Width

 0.750 in

Recessed Screw

 Yes

Screw Size

 3/8-24 x 1

Screw Material

 Alloy Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

2L208H

2-1/2" Hinge Type Shaft Collar, Steel

$121.69
$121.69
