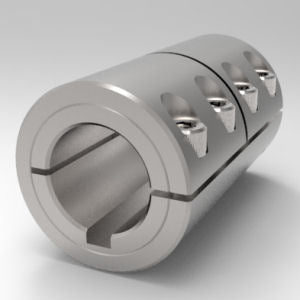

1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
    1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
    1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Available with straight-through or stepped bores
  • Smooth bore protects shafts from damage
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one. Standard keyways provide added torque capacity and fixed shaft phasing. It is ideal for overhung or unsupported shafts and is an excellent way to attach items such as mixer paddles and shaft extensions.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in two styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD





Specifications

Part Number

 7S100100K

Series

 Signature

Material

 Stainless Steel

Alloy

 303

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 1.24 lb

Country of Origin

 USA

UPC Code

 662786016394

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 1 in

Keyway A

 0.250 in

Bore Size B



 1 in

Keyway B

 0.25 in

Outside Diameter

 1.750 in

Total Length

 3.000 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 18-8 Stainless Steel
"
Description
  • Mate two shafts with zero backlash
  • Keyways provide added torque capacity and fixed shaft phasing
  • Available with straight-through or stepped bores
  • Smooth bore protects shafts from damage
  • Offered in High Strength and Low Profile styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one. Standard keyways provide added torque capacity and fixed shaft phasing. It is ideal for overhung or unsupported shafts and is an excellent way to attach items such as mixer paddles and shaft extensions.

Clamp-Type Couplings with Keyways are available with straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in two styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD





Specifications

Part Number

 7S100100K

Series

 Signature

Material

 Stainless Steel

Alloy

 303

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 1.24 lb

Country of Origin

 USA

UPC Code

 662786016394

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size A



 1 in

Keyway A

 0.250 in

Bore Size B



 1 in

Keyway B

 0.25 in

Outside Diameter

 1.750 in

Total Length

 3.000 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 18-8 Stainless Steel
"
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

7S100100K

1" X 1" One-Piece Split Clamp-Type Rigid Shaft Coupling/Keyways, SS

$169.99
$169.99
