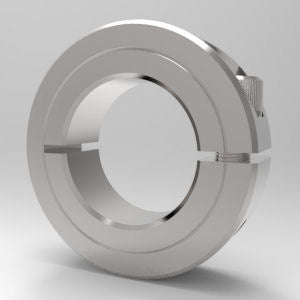

1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
    1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
    1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel
Description
  • Smooth bore protects shafts from damage
  • Superior holding power over set-screw type collars
  • Offered in High Strength, Low Profile and Heavy Duty styles
  • Stocked in a variety of materials
1-Piece Clamp-Type Shaft Collars are for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub. Precision machined, non-marring, easy to adjust, with high clamping power, they are stocked in the following materials:
  • Steel
  • Stainless Steel
  • Aluminum
  • Nylon
  • Delrin
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power
Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).



Specifications

Part Number

 7C109

Series

 Signature

Material

 316 Stainless Steel

Alloy

 316/316L

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 0.37 lb

Country of Origin

 USA

UPC Code

 662786024863

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size

 1-9/16 in

Outside Diameter

 2.375 in

Width

 0.563 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 316 Stainless Steel
Description
  • Smooth bore protects shafts from damage
  • Superior holding power over set-screw type collars
  • Offered in High Strength, Low Profile and Heavy Duty styles
  • Stocked in a variety of materials
1-Piece Clamp-Type Shaft Collars are for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub. Precision machined, non-marring, easy to adjust, with high clamping power, they are stocked in the following materials:
  • Steel
  • Stainless Steel
  • Aluminum
  • Nylon
  • Delrin
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power
Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).



Specifications

Part Number

 7C109

Series

 Signature

Material

 316 Stainless Steel

Alloy

 316/316L

Finish

 Shiny

Type

 Low Profile

Approximate Weight

 0.37 lb

Country of Origin

 USA

UPC Code

 662786024863

RoHS2 Compliant

 Yes

REACH Compliant

 Yes

Dimensional Attributes

Bore Size

 1-9/16 in

Outside Diameter

 2.375 in

Width

 0.563 in

Recessed Screw

 No

Screw Size

 1/4-28 x 5/8

Screw Material

 316 Stainless Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

7C109

1-9/16" One-Piece Split Clamp-Type Shaft Collar, 316 Stainless Steel

$72.56
$72.56
